Description
Technical Parameters
FAQ
Products Introduction
What is a Monobloc Aerosol Filling Machine?
It is an integrated solution designed to perform liquid filling, valve insertion, crimping, and gas filling within a single compact unit. It ensures high efficiency, precise control, and reliable performance for aerosol production.
Main integrated functions include:
- 2-head Liquid filling
- Valve insertion
- Valve fitting
- Valve crimping
- 2-head Propellant (gas) filling
Key Features

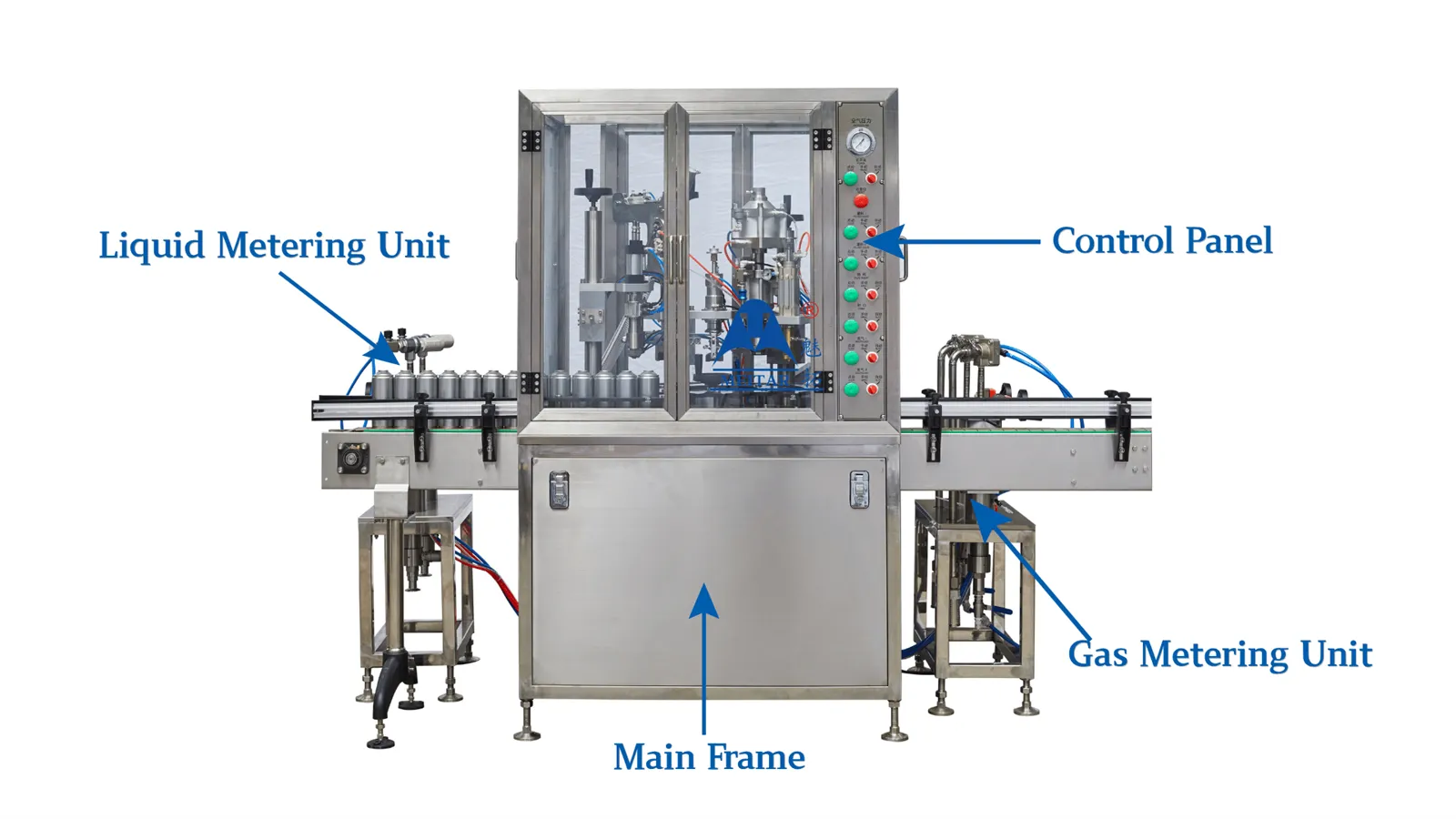

High-Efficiency Integrated Aerosol Filling System
- All-in-one monobloc design for space saving
- Rotary indexing system for continuous production
- High accuracy in filling and crimping
- Easy operation and low maintenance
Technical Parameters
| Model |

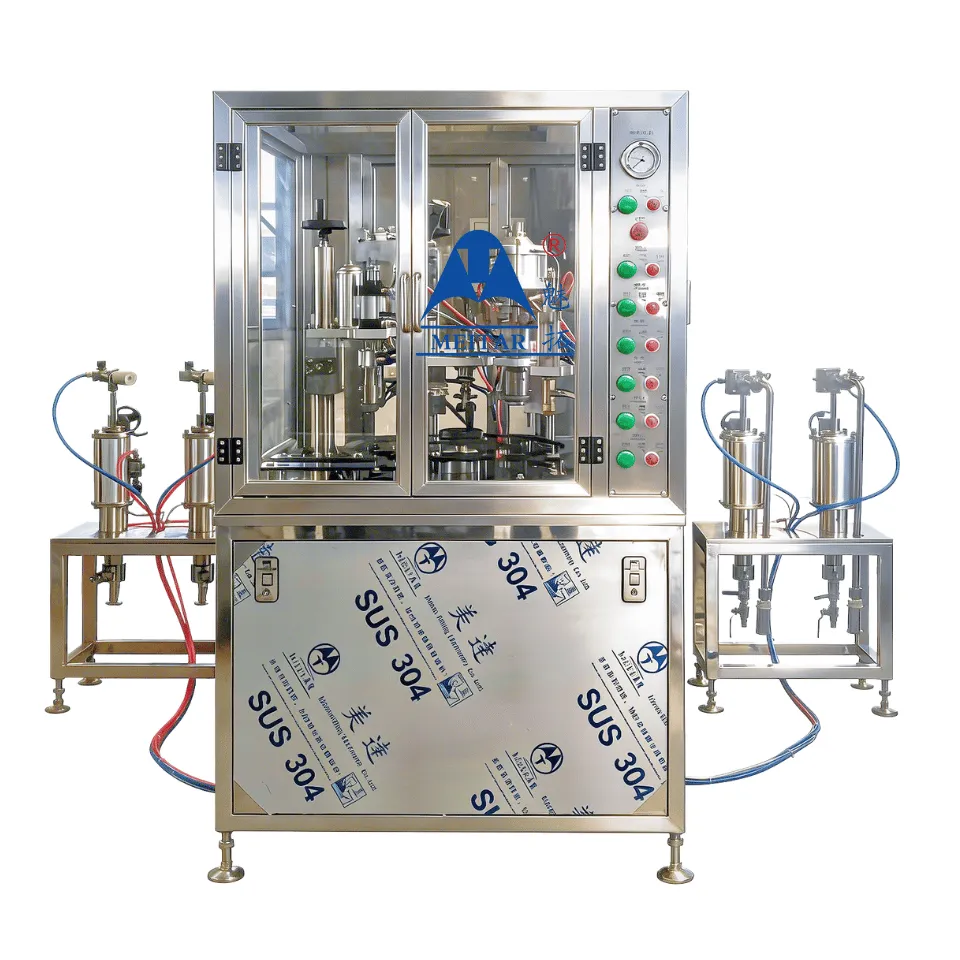

QGQ750-B Monobloc Aerosol Filling machine
|
| Applicable aerosol can diameter | 35-66mm |
| Applicable aerosol can Height | 70-330mm |
| Applicable aerosol can Opening Internal Diameter | 1" ( 25.4mm ) |
| Applicable aerosol can valve Size | 1" ( 25.4mm ) |
| Single-head filling volume | 10-300ml |
| Total filling volume | 30-900ml |
| Repeat filling Accuracy | ≤±1% |
| Working Pressure | 0.5-0.7MPa |
| Max. Air Consumption | 4.5m3/min |
| production capacity | 30-60cans/min |
| dimensions | 1100 (L) ✖️930 (W) ✖️1870 (H) mm |
Monobloc vs Individual Stations Aerosol Filling Machine
Choose the Right Aerosol Filling Solution for Your Production
| Picture |
|
|
|

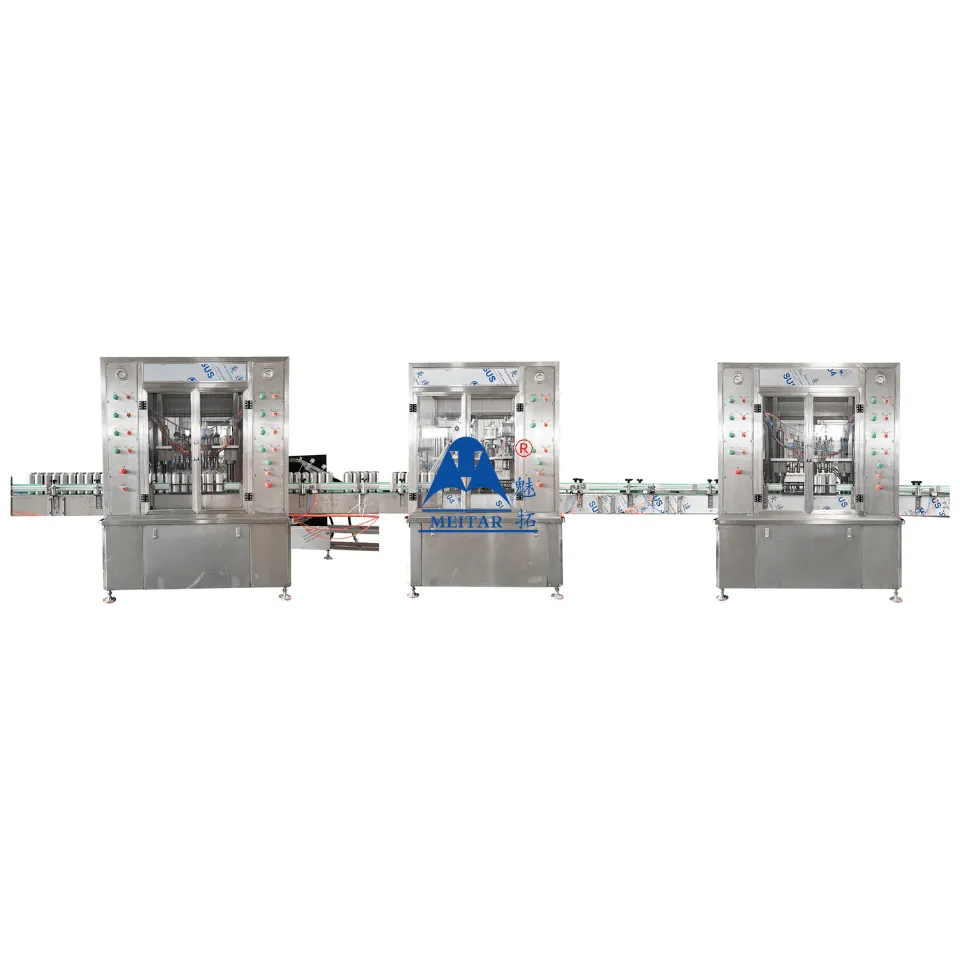

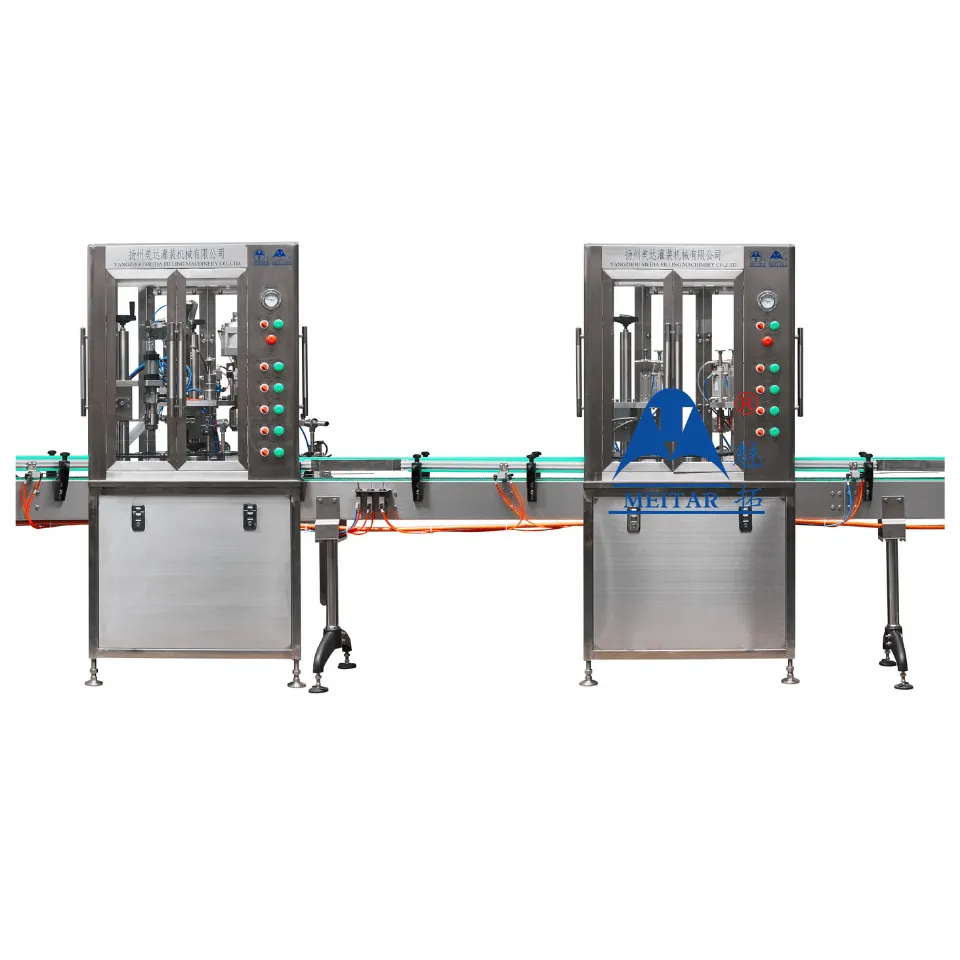

| Model number | QGQ750-B Monobloc Aerosol filling Machine | QGQ750 Aerosol filling Machines | QGQ-II High speed aerosol filling Machine production Line |
| Structure | All-in-one integrated unit | 2 unit Machines | 3 unit Machines |
| Configuration |
2 Product filling heads valve Insertion valve fitting 2 Gas / propellant filling heads |
3 Product filling heads valve Insertion valve fitting 4 Gas / propellant filling heads |
8 Product filling heads 2 valve Insertion Heads 2 valve fitting heads 8 Gas / propellant filling heads |
| Production Speed | 30-40 cans per minute | 50-60 cans per minute | 100-120 cans per minute |
| Footprint | Compact, space-saving | Requires more space | |
| Flexibility | fixed / non‑expandable | easy to adjust / expand | |
| Cost | Lower initial cost | Higher initial cost | |
| Labor Requirement | Minimal | More operators needed | |
| Best For | medium aerosol production | Mass aerosol production | |
*This comparison between monobloc aerosol filling machines and individual stations aerosol filling machines helps manufacturers choose the most suitable equipment based on production capacity, budget, and automation requirements.
Not sure which solution fits your production?

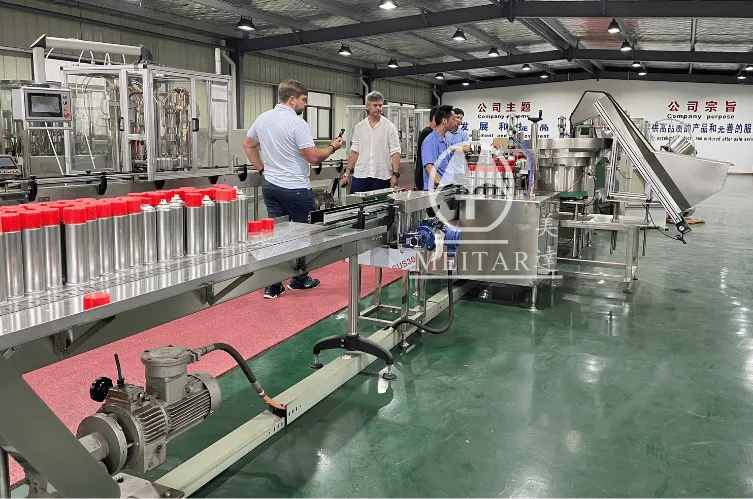

Contact us for a customized aerosol filling solution.
Hot Tags: MEITAR QGQ750-B Monobloc Aerosol Filling Machine, China MEITAR QGQ750-B Monobloc Aerosol Filling Machine manufacturers, factory
HS CODE: 8422303090
