Yangzhou Meida Filling Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic aerosol filling machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy advanced automatic aerosol filling machine at competitive price from our factory.
This machine features high efficiency, high precision, and full automation, suitable for filling various raw materials and propellants (LPG, F12, DME, CO₂, N₂, etc.) into 1-inch aerosol cans. Composed of the following units:
● Can feeder
● Automatic valve sorter and inserter
● Automatic concentrate filling
● Automatic valve crimping'
● Automatic propellant addition
● Automatic weighing machine
● Automatic water bath leak tester
● Automatic actuator presser
● Automatic overcap presser
● Clamp type belt conveyor for coder
● Packing table
It serves as an optimal solution for large-scale aerosol product manufacturers.
Features and Workflow
Automatic can feeding machine
● Explosion-Proof Automation
Driven by a 0.75kW Shanghai Liangjing explosion-proof motor (ATEX-equivalent certification implied).
Automated can sorting and sequential conveying.
● Anti-Jamming Design
Prevents can collisions, jams, or tipping during transport.
● Precision Speed Control
Adjustable rotation speed: 4.5–23 rpm for flexible production pacing.
● Industrial-Grade Construction
304 stainless steel panels (1.2mm thickness, GB Standard) with brushed finish.
● Premium Components
Pneumatic system uses Japanese SMC components (industry-leading reliability).
Automatic liquid filling machine
● Triple-Head Precision Filling
3 independent pneumatically-controlled filling heads
"No can, no filling" anti-waste function
Individual head operation capability
● High-Speed Accuracy
≤±1% filling precision
50-60 cans/minute throughput
Adjustable filling volume: 10-250ml/head
● Robust Construction
Worktable: Brushed SS304 + aluminum profiles
0.5 MPa operating pressure stability
● Premium Pneumatics
Italian Metalwork & Japanese SMC components

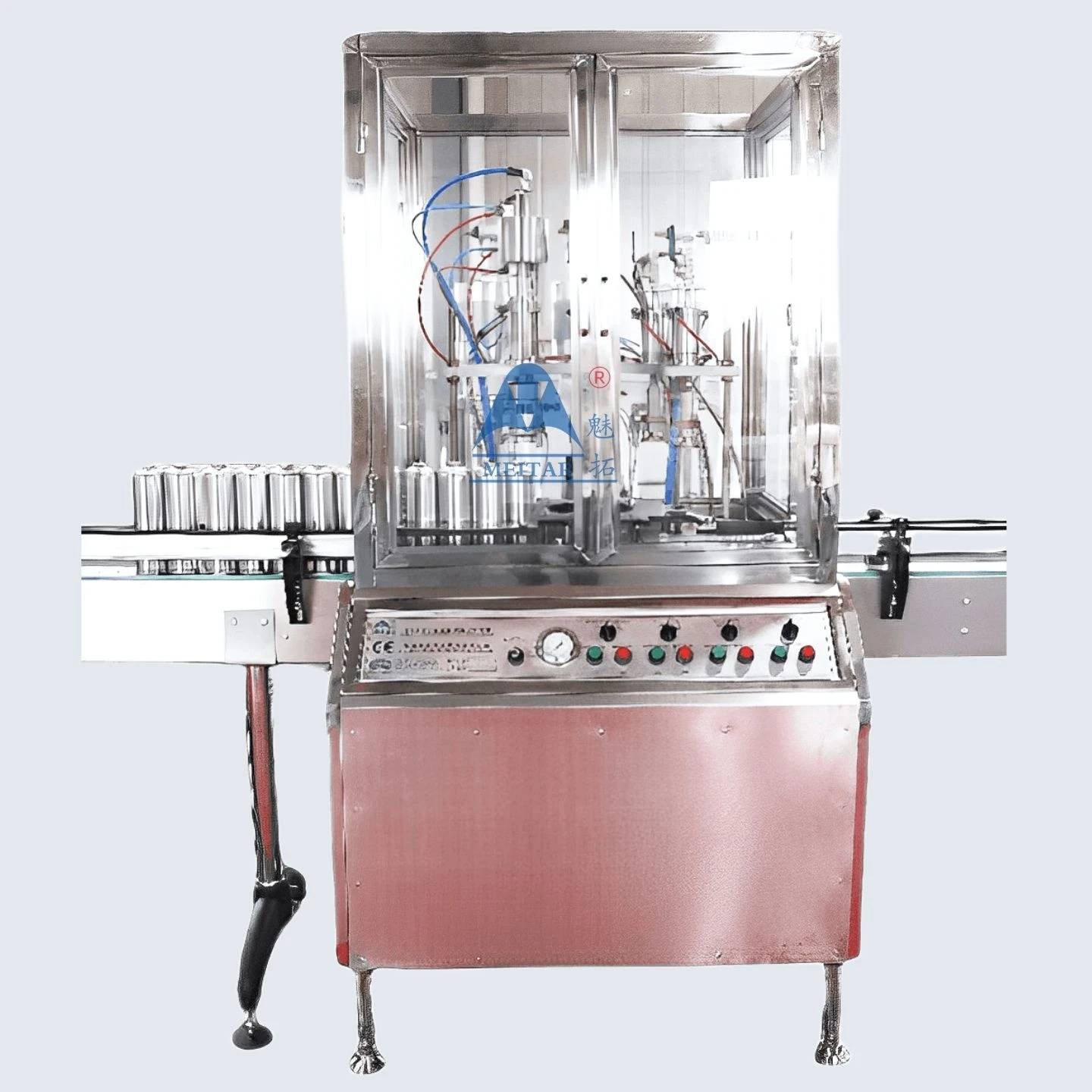

Automatic crimping & gassing machine
● High-Precision Gas Charging System
≤±1% filling accuracy
Configurable fill volume: 10-250ml/head
Zero-leakage TERCO-style (US) gas filling heads with guided positioning
● Efficient Pressure Management
Dual booster pumps + gas accumulator tank for stable pressure buffering
Operating pressure: 0.6 MPa
● Industrial-Grade Construction
Worktable combines brushed stainless steel (Type 304) and aluminum profiles
All structural stainless steel meets 304-grade standards
● Premium Pneumatic Components
Italian Metalwork and Japanese SMC valves/actuators
High-Speed Operation
Speed: 40-50 cans/minute
Automatic aerosol checkweigher
● Pharmaceutical-Grade Precision
≤±1g accuracy across 0-1500g range
High-speed rejection of out-of-spec cans at 60-65 cans/min
● Explosion-Proof Safety System
ATEX-compliant construction
● Premium European/Japanese Components
Control System: Siemens PLC (Germany) + Weinview HMI (Taiwan)
Sensors: Führinger load cells (Germany)
Electronics: Schneider Electric (France)
Pneumatics: SMC (Japan)
Proximity Sensors: Leuze (Germany)
● Intelligent Operation
Stepless speed control via stepper motor
Visual diagnostics: Fault alerts/emergency stop indicators
Touchscreen human-machine interface (HMI)
Automatic aerosol water bath leakage detection machine
● Automated Leak Testing
Spiral can transfer system with explosion-proof variable-speed drive
Rotating hanging mechanism lifts/clamps cans for immersion
3-5 min water bath inspection through observation windows
● Multi-Stage Drying System
Heated explosion-proof blower (3.8kW) ensures 100% moisture removal
● Precision Temperature Control
±1°C accuracy in 1.1m³ water tank
30kW electric heating for rapid thermal stabilization
● High-Throughput Operation
Processes 80-90 cans/minute
Automatic aerosol spray nozzle placing machine
● High-Capacity Automation
10,000-nozzle vibratory hopper for continuous feeding
Compressed air-driven nozzle transfer to core wheels
Zero manual intervention required
● Precision Pressing Mechanism
Adjustable pressing speed/pressure prevents product leakage
Position-synchronized cylinder actuation
Automatic aerosol overcap pressing machine
● End-to-End Automation
Integrated system: Feeder → Vibratory Sorter → Pneumatic Track → Pressing Unit
Automatic cap detection & feed control ensures continuous operation
Zero manual intervention required
● Precision Pressing Technology
Adjustable pressure/speed for deformation-free sealing
Position-synchronized pneumatic pressing
Clamp type belt conveyor for coder
● Non-Rotational Bottom Coding
Synchronized clamping conveyors grip cans without rotation
Ensures smear-free, legible printing on can bases
Eliminates tipping/scuffing during coding
● Explosion-Proof Operation
Powered by 0.37kW explosion-proof motor (ATEX-equivalent)
Certified for flammable aerosol environments
● Flexible & Space-Efficient
Adjustable speed: 40-60 cans/min
Tool-free diameter adaptation for various can sizes
Modular design installs directly onto existing conveyors
Packing workbench
● Fully Customizable Design
Tailored conveyor lengths to match production layouts
Configurable explosion-proof motors for specific power/safety needs
Modular packing workstation (2025×600mm base size, expandable)
● Seamless Integration
Designed as auxiliary modules for automated aerosol lines
Compatible with filling/capping/coding equipment previously described
Application
Personal Care & Cosmetics
● Hairsprays, dry shampoos, deodorants/antiperspirants
● Body mists, sunscreen sprays, shaving foams
● Makeup setting sprays, topical skincare mists
Healthcare & Pharmaceuticals
● Topical antiseptics, wound sprays
● Asthma inhalers (MDIs)
● Pain relief spray
● Medical device disinfectant
Automotive & Aerospace
● Brake cleaners, degreasers
● Silicone lubricants, anti-corrosion sprays
● Refrigerant charging (A/C systems)
● Aviation maintenance products
Household & Industrial Maintenance
● Air fresheners, fabric refreshers
● Disinfectants, surface cleaners (kitchen/bathroom)
● Lubricants (WD-40 type), rust removers
● Spray paints, primers, and protective coatings
Food & Culinary
● Cooking oil sprays, whipped cream
● Pan release agents, icing decorators
● Food-grade lubricants
Agriculture & Pest Control
● Insecticides, herbicides, fungicides
● Livestock antiseptic sprays
● Greenhouse fumigants
Industrial Manufacturing
● Mold release agents
● Electronics contact cleaners
● Compressed gas dusters
● Specialized coatings (anti-static, conductive)
Specialized Sectors
● Fire suppression systems
● Dental impression sprays
● Textile/fiber processing aids
FAQ
01.What type of aerosol spray filling machines do you offer, and are they suitable for both alcohol-based and water-based formulas?
02.What is the maximum production capacity (cans per hour) of your fully automatic aerosol filling lines?
03.Can your machine handle different aerosol can sizes (e.g., 150ml, 200ml, 250ml)? Is it easy to switch between sizes?
04.Can we visit your factory or see a live demonstration (on-site or via video) before making a decision?
05.What level of customization is possible based on our product type and factory layout?
06.What is your delivery time, and how long does installation and commissioning usually take?
Standard delivery: 45–60 working days after deposit
Installation & commissioning: Usually 7–10 working days depending on system complexity
We offer both remote support and on-site setup by our engineers.
Hot Tags: Automatic Aerosol Filling Machine, China Automatic Aerosol Filling Machine manufacturers, factory, multi functional aerosol can filling equipment, flexible aerosol can filling equipment
| Production speed | 2400-3600 cas per hour |
| Applicable valve (mM) | 25.4 (1 inch) |
| Applicable cans diameter(mM) | 35-65 |
| Applicable cans height (mM) | 85-330 |
| Liquid Filling volume((mL) | 30-750 |
| Filling Accuracy | ≤±1% |
| Sealing Accuracy | ≤3‰ |
| Working pressure (Mpa) | 0.6-1 |
| Max gas consumption (m3/min) | 5 |
